Kilargo IS5177Asi Sweep Action Seal 14.4mm- Clear Anodised Aluminium
Original price was: $59.11.$41.38Current price is: $41.38.
- Safe Shopping Guaranteed
- Safe Payments, Happy Customers
- No-Questions-Asked Returns
- The quality solution for all your needs.
These silicone sweep seals are all utilised to prevent ambient/ medium temperature smoke, draught and dust penetration. The IS5177Asi seal has an angled silicone gasket and can be utilised around perimeters of automatic pivot and sliding doors to good effect.
Standard Lengths
- 1000mm
- 2250mm
- Also available in: 250mm increments from 1000mm to 5000mm (Special Order Only)
Standard Finishes
- Silver anodised aluminium carrier with grey silicone fin
- (Black silicone fins also available upon request)
Fixing
- Silicone sweep seals (within carriers) can be screw-fixed (and self-adhered) to the desired surface
- Fixing screws and aggressive backing tape are supplied
Approvals
- Medium temperature smoke leakage approvals to AS1530 Part 7 available on proprietary door assemblies
- Conforms with NCC Specification C3.4 smoke sealing requirements
- Acoustically tested in accordance with AS1191, IS0140.3 and ISO10140-2
| Door Seal Length | 1000mm, 2250mm |
|---|---|
| Suitable for Smoke Doors | Yes |
| Self Adhesive | Yes |
| Gasket Material | Silicon Impregnated |
| Gasket / Seal Colour | Grey |

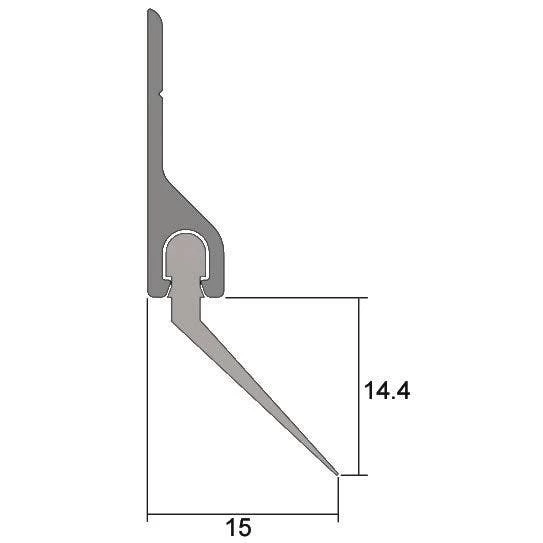

| Brush / Gasket Length | 14.4mm |
| Seal Can Be Installed | Surface Fix |
| Contains Intumescent Material | No |
| Suitable for Door Type | Timber Doors, Aluminium Doors |
| Acoustic Rated to AS1191 and ISO140.3 | Yes |
| MPN | IS5177ASI |
| Fire Tested | No |
| Includes Fixing Screws | Yes |
| Product Material | Aluminium |
| Product Finish or Colour | Clear Anodised (CA) |
| Product Thickness | 15mm |
| Product Height | 37.5mm |
| Brand | Kilargo |
| Product Warranty | 2 Years |
