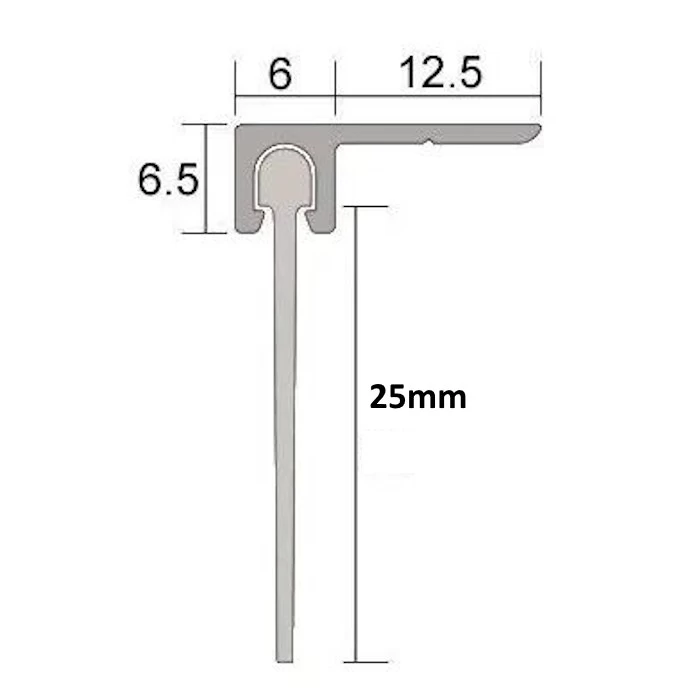

These silicone sweep seals are all utilised to prevent ambient / medium temperature smoke, draught and dust penetration. The IS5161Hsi is designed with a 90º angle aluminium carrier for use on sliding doors.The IS5161Hsi aluminium carrier can be with either a 13mm, 19mm or 25mm silicone fin.
Standard Lengths
- 1000mm
- 2250mm
- Also available in: 250mm increments from 1000mm to 5000mm (Special Order Only)
Standard Finishes
- Silver anodised aluminium carrier with grey silicone fin
- (Black silicone fins are also available upon request)
Fixing
- Brush seals (within carriers) can be screw fixed or self-adhered to the desired surface
- Fixing screws and aggressive backing tape are supplied
Approvals
- Â Medium temperature smoke leakage approvals to AS1530 Part 7 available on proprietary door assemblies
- Conforms with NCC Specification C3.4 smoke sealing requirements
- Acoustically tested in accordance with AS1191, IS0140.3 and ISO10140-2
