Kilargo IS5160H Sweep Action Seal 25mm – Clear Anodised Aluminium
Original price was: $51.16.$35.81Current price is: $35.81.
- Safe Shopping Guaranteed
- Safe Payments, Happy Customers
- No-Questions-Asked Returns
- The quality solution for all your needs.

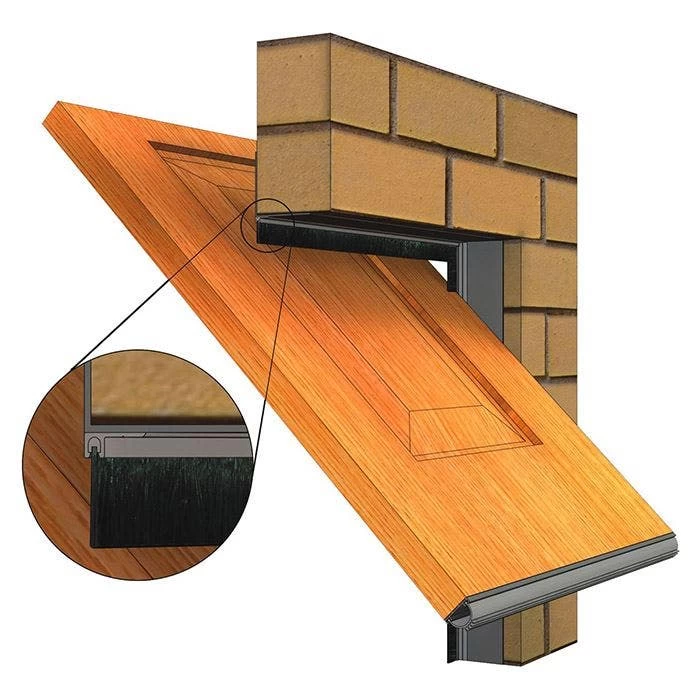

The IS5160H seal is designed with a 90º angle aluminium carrier and is used to prevent draught and dust penetration on sliding doors.
The angled aluminium carriers can be fitted with either 13mm, 19mm or 25mm black nylon brush.
(50mm brush is also available upon request).

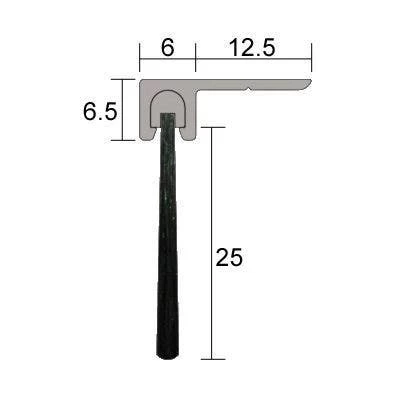

Gap Size
- Min. 23mm / max. 29mm
- (Dependent on brush size utilised.)
Brush Length
- 25mm
Standard Lengths
- 1000mm
- 2250mm
- 2500mm
- Also available in: 250mm increments from 1000mm to 3000mm
Standard Finishes
- Silver anodised aluminium carrier with black nylon brush
Fixing
- Brush seals (within carriers) can be screw fixed or self-adhered to the desired surface
- Fixing screws and aggressive backing tape are supplied
Approvals
- Durability tests demonstrating over 100,000 open and close cycles
| Door Seal Length | 1000mm, 2250mm, 2500mm |
|---|---|
| Suitable for Smoke Doors | No |
| Self Adhesive | Yes |
| Gasket Material | Nylon Brush |
| Brush / Gasket Length | 25mm |
| Seal Can Be Installed | Surface Fix |
| Contains Intumescent Material | No |
| Suitable for Door Type | Timber Doors, Aluminium Doors |
| Acoustic Rated to AS1191 and ISO140.3 | No |
| MPN | IS5160H |
| Fire Tested | No |
| Includes Fixing Screws | Yes |
| Product Material | Aluminium |
| Product Finish or Colour | Clear Anodised (CA) |
| Product Thickness | 31.5mm |
| Product Height | 18.5mm |
| Brand | Kilargo |
| Product Warranty | 2 Years |
