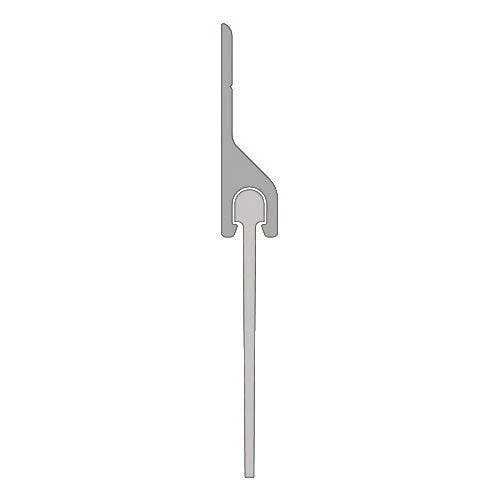

Kilargo IS5121si Sweep Action Seal 25mm – Clear Anodised Aluminium
Original price was: $43.65.$30.56Current price is: $30.56.
- Safe Shopping Guaranteed
- Safe Payments, Happy Customers
- No-Questions-Asked Returns
- The quality solution for all your needs.
These silicone sweep seals are designed to be used around the head and jambs, door bottom and meeting stiles of single or double swing doors, revolving, tilt-up and roller doors. These seals help protect against ambient and medium temperature smoke, draught and dust, and weather penetration. The slim line carriers are aesthetically angled to avoid dust build-up. These seals provide excellent sealing solutions for pivot action smoke doors and clean room applications.
Gap Size
- Min. 19mm / max. 24mm
Standard Lengths
- 1000mm
- 2250mm
- Also available in: 250mm increments from 1000mm to 3000mm
Standard Finishes
- Silver anodised aluminium carrier with grey silicone fin
Fixing
- Silicone sweep seals (within carriers) can be screw-fixed or self-adhered to the desired surface
- Fixing screws and aggressive backing tape are supplied
Approvals
- Fire tested to AS1530 Part 4 in accordance with AS1905 Part 1
- Conforms with NCC Specification C3.4 smoke sealing requirements
- Acoustically tested in accordance with AS1191, IS0140.3 & ISO10140-2
| Door Seal Length | 1000mm, 2250mm |
|---|---|
| Suitable for Door Type | Timber Doors, Aluminium Doors |
| Self Adhesive | Yes |
| Max Door Gap | 24mm |
| Min Door Gap | 19mm |
| Gasket Material | Silicon Impregnated |
| Gasket / Seal Colour | Grey |
| Brush / Gasket Length | 25mm |
| Seal Can Be Installed | Surface Fix |
| Contains Intumescent Material | No |
| Suitable for Smoke Doors | Yes |
| MPN | IS5121SI |
| Acoustic Rated to AS1191 and ISO140.3 | Yes |
| Fire Tested | Yes |
| Includes Fixing Screws | Yes |
| Product Material | Aluminium |
| Product Finish or Colour | Clear Anodised (CA) |
| Product Thickness | 6mm |
| Product Height | 48mm |
| Brand | Kilargo |
| Product Warranty | 2 Years |
