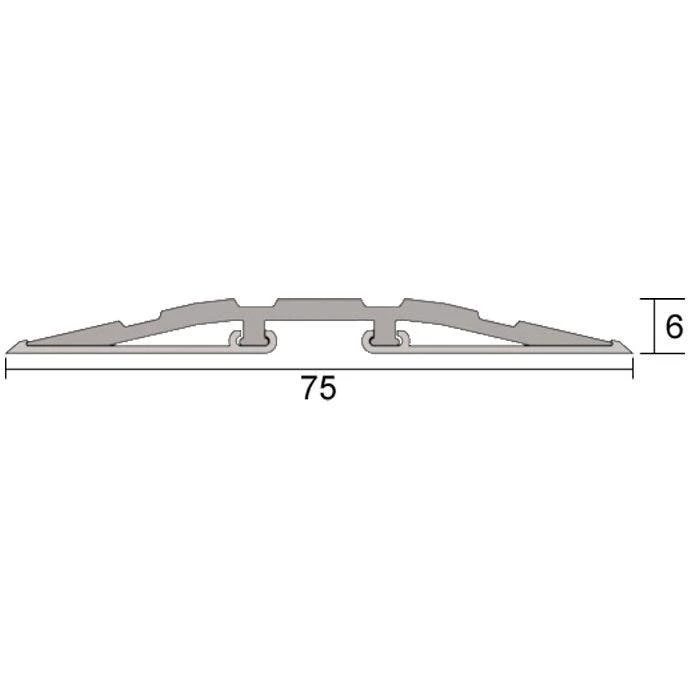

Kilargo IS4010 Threshold Plate 6mm – Clear Anodised Aluminium

These heavy duty, low profile threshold plates are used in conjunction with other Kilargo door bottom seals to help prevent rain infiltration, draught and smoke penetration. Their 6mm low profile design ensures compliance with the ‘access for people with disability’ requirements, AS1428/1 and BCA D3, particularly for wheelchair traffic.
These threshold plates have a durable, anodised finish and are supplied with PVC bedding pads to help eliminate vibration, noise and moisture ingress.

Standard Lengths

• 1000mm
• 2250mm
• 2500mm
• Also available in: 250mm increments from 1000mm to 5000mm (Special Order Only)

Standard Finishes

• Silver anodised aluminium

Fixing

• Stainless Steel fixing screws and plugs are supplied
• Alternatively, fasten with builder’s adhesive for concealed fixing

Approvals

• Fire tested to AS1530 Part 4 in accordance with AS1905 Part 1
• Certifications GVYI.R26629, GVWZ.R26629, GVWZ7.R26629
• Complies with AS1428 Part 1 (Design for access and mobility)
• Conforms to NCC D2.15 & D3.3 (Access for people with disabilities)
