Kilargo IS3022si Door Bottom Seal 12mm – Clear Anodised Aluminium
Original price was: $46.46.$32.52Current price is: $32.52.
- Safe Shopping Guaranteed
- Safe Payments, Happy Customers
- No-Questions-Asked Returns
- The quality solution for all your needs.

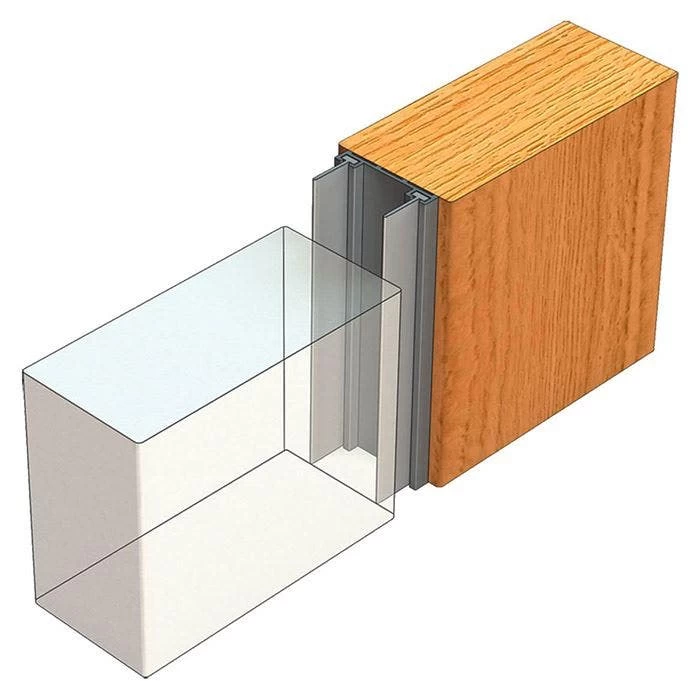

The IS3022si is a sweep action blade seal with high performance silicone rubber fins, which can be fitted to door bottoms or perimeters of single and double action doors. This seal can provide effective containment against dust, light, weather and vermin, and is an ideal smoke seal for pivot door assemblies.
Gap Size
- Min. 13mm / max. 17mm
Standard Lengths
- 1000mm
- 2250mm
- Also available in: 250mm increments from 1000mm to 5000mm (Special Order Only)
Standard Colours
- Silver anodised aluminium with grey silicone gasket
- (black silicone gasket also available to special order)
Fixing
- Timber fixing screws are supplied with detailed fitting instructions
- Fixing holes are pre-drilled to allow the seals to be positioned accurately
Approvals
- Conforms to BCA Specification C3.4 for smoke doors (when fitted to compliant door leaves)
| Door Seal Length | 1000mm, 2250mm |
|---|---|
| Suitable for Door Type | Timber Doors |
| Max Door Gap | 17mm |
| Min Door Gap | 13mm |
| Gasket Material | Silicon Impregnated |
| Gasket / Seal Colour | Grey |
| Brush / Gasket Length | 12mm |
| Seal Can Be Installed | Concealed |
| Contains Intumescent Material | No |
| Suitable for Smoke Doors | Yes |
| MPN | IS3022SI |
| Acoustic Rated to AS1191 and ISO140.3 | Yes |
| Fire Tested | No |
| Includes Fixing Screws | Yes |
| Product Material | Aluminium |
| Product Finish or Colour | Clear Anodised (CA) |
| Product Thickness | 35mm |
| Product Height | 17.75mm |
| Brand | Kilargo |
| Product Warranty | 2 Years |
