The IS3020si seals can be fitted to door bottoms or meeting stiles of single and double action doors. They can also be utilised for door bottoms on roller type doors.
The seal can provide effective containment against medium and ambient temperature smoke, sound, dust, light, weather and vermin.

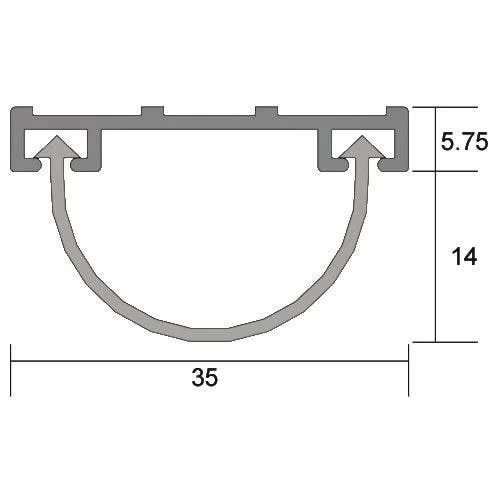

Gap Size
- Min. 15mm / max. 19mm
Standard Lengths
- 1000mm
- 2250mm
- Also available in: 250mm increments from 1000mm to 5000mm (Special Order Only)
Standard Colours
- Silver anodised aluminium with grey silicone gasket
- (black silicone gasket also available to special order)
Fixing
- Timber fixing screws are supplied with detailed fitting instructions
- Fixing holes are pre-drilled to allow the seals to be positioned accurately
Approvals
- Conforms to BCA Specification C3.4 for smoke doors (when fitted to compliant door leaves)
