Kilargo IS3015si Door Bottom Seal 8mm – Clear Anodised Aluminium
Original price was: $31.12.$21.78Current price is: $21.78.
- Safe Shopping Guaranteed
- Safe Payments, Happy Customers
- No-Questions-Asked Returns
- The quality solution for all your needs.

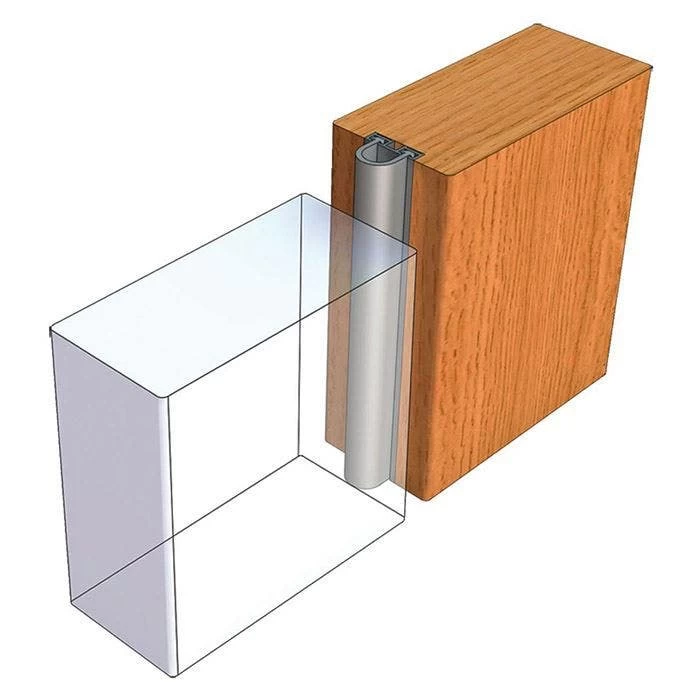

The IS3015si seal is cleverly concealed in a rebated groove in the meeting stile or bottom of the door leaf (respectively) for single and double swing timber doors. These seals may be surface mounted or rebated into doors to allow for depth adjustment as required. Both seals can provide effective containment against medium and ambient temperature smoke, sound, dust, light, weather and vermin.
Gap Size
- Min. 3mm / max. 8mm
Standard Lengths
- 1000mm
- 2250mm
- Also available in: 250mm increments from 1000mm to 5000mm (Special Order Only)
Standard Colours
- Silver anodised aluminium with grey silicone gasket
- (black silicone gasket also available to special order)
Fixing
- Fixing screws are supplied and fixing holes are pre-drilled
- Push-fit gasket conceals fixings and allows for quick and easy installation
Approvals
- Conforms to BCA Specification C3.4 for smoke doors (when fitted to compliant door leaves)
| Door Seal Length | 1000mm, 2250mm |
|---|---|
| Suitable for Smoke Doors | Yes |
| Max Door Gap | 8mm |
| Min Door Gap | 3mm |
| Gasket Material | Silicon Impregnated |
| Gasket / Seal Colour | Grey |
| Seal Can Be Installed | Concealed |
| Contains Intumescent Material | No |
| Suitable for Door Type | Timber Doors |
| Acoustic Rated to AS1191 and ISO140.3 | Yes |
| MPN | IS3015SI |
| Fire Tested | No |
| Includes Fixing Screws | Yes |
| Product Material | Aluminium |
| Product Finish or Colour | Clear Anodised (CA) |

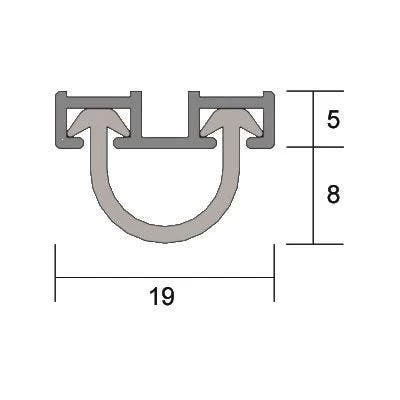

| Product Thickness | 19mm |
| Product Height | 13mm |
| Brand | Kilargo |
| Product Warranty | 2 Years |
