Kilargo IS0511 Elastomeric Perimeter Seal – Black
Original price was: $12.00.$8.40Current price is: $8.40.
- Safe Shopping Guaranteed
- Safe Payments, Happy Customers
- No-Questions-Asked Returns
- The quality solution for all your needs.

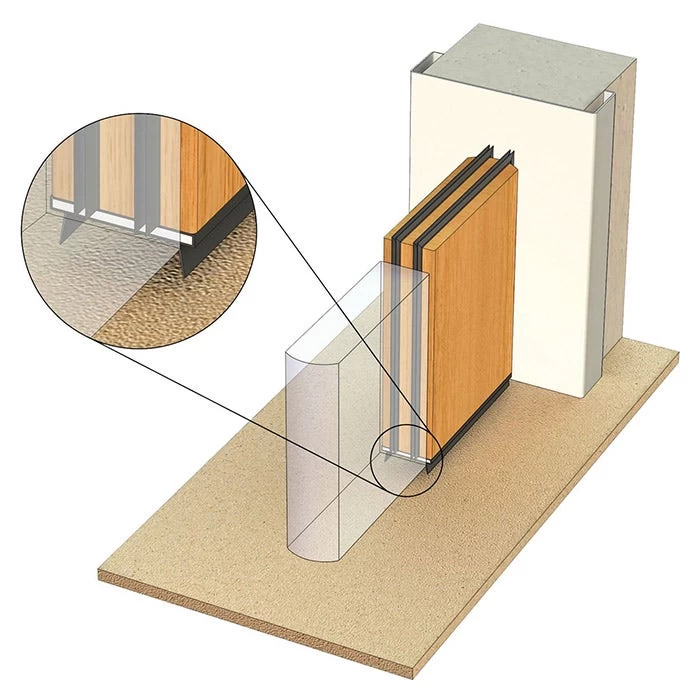

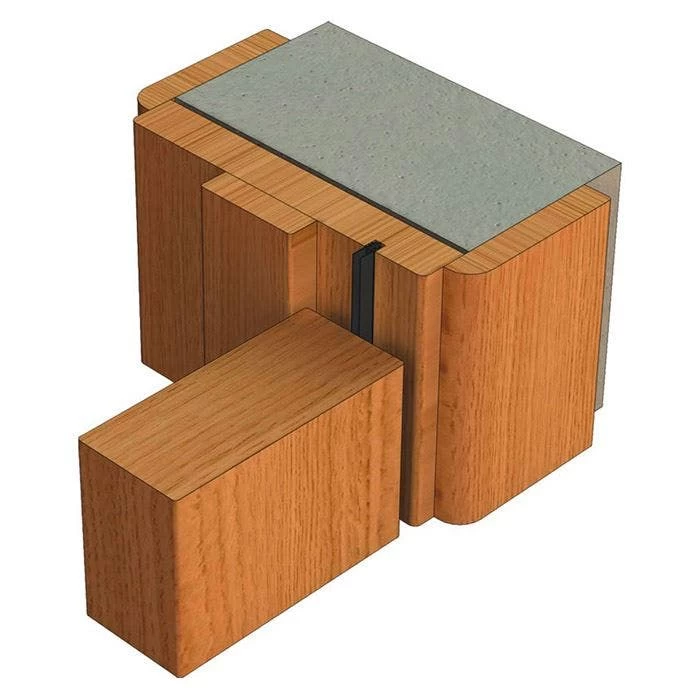

Incorporated into door assemblies for its medium temperature smoke and acoustic properties. Also used as a privacy seal on toilet
cubicle doors. This rigid PVC base seal has co-extruded flame retardant, twin flexible smoke and acoustic fins. It fits quickly and easily into a nominal 3mm (wide) by 5mm (deep) interference fit groove.

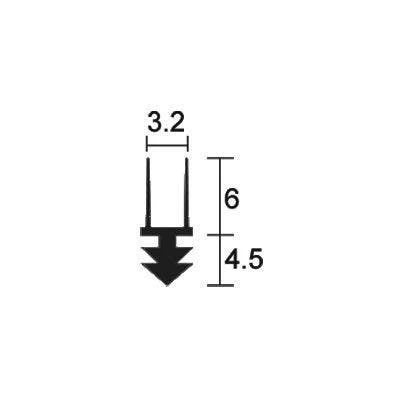

* This seal is available with either a 4mm or 6mm fin height.
Gap Size
- 4mm Fin Height > min. 2mm / max. 3mm
- 6mm Fin Height > min. 3mm / max. 5mm
Colour
- Black (white, grey & dark brown colours available to special order)
Approvals
- Fire tested to AS1530 Part 4 in accordance with AS1905 Part 1
- Medium temperature smoke leakage approvals to AS1530 Part 7 available on proprietary door assemblies
- Conforms with NCC Specification C3.4 smoke sealing requirements
- Acoustically tested in accordance with AS1191, IS0140.3 and ISO10140-2
- Durability tests demonstrating over 100,000 open and close cycles
| Door Seal Length | 1000mm, 2100mm, 2400mm, 2700mm |
|---|---|
| Suitable for Door Type | Timber Doors |
| Max Door Gap | 5mm |
| Min Door Gap | 3mm |
| Gasket Material | PVC |
| Gasket / Seal Colour | Black |
| Seal Can Be Installed | Rebated |
| Contains Intumescent Material | No |
| Suitable for Smoke Doors | Yes |
| MPN | IS0511 |
| Acoustic Rated to AS1191 and ISO140.3 | Yes |
| Fire Tested | Yes |
| Product Material | PVC |
| Product Finish or Colour | Black (BLK) |
| Product Height | 10.5mm |
| Product Width | 6.2mm |
| Brand | Kilargo |
| Product Warranty | 2 Years |
